Soft D-PHY Timing Calculator ⓘ

Lattice Radiant automatically calculates protocol timing parameters based on user input. However, users can also customize these parameters. This tool assists in calculating alternative D-PHY timing parameter values.

This is meant to be used for Soft D-PHY and CIL only.
Calculations assume Gear 8 Mode.

Lattice MIPI D-PHY TX Page

Lattice MIPI D-PHY RX Page

Instructions

  1. Insert desired D-PHY Clock Frequency and Bit Rate into their fields.
  2. Press "Calculate" to show the values for TX timing parameters and DX timing output.
  3. Choose a value between Min and Max for each parameter for your own design.

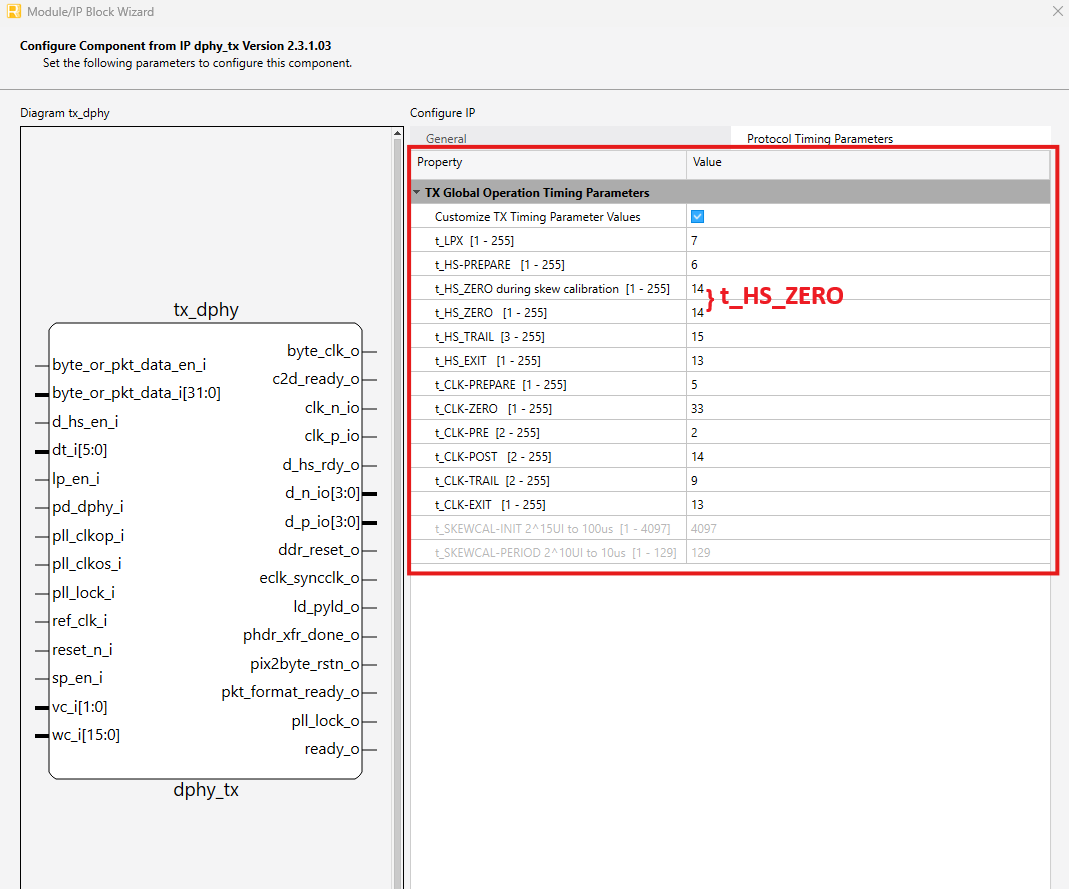

Customizing TX Soft D-PHY Protocol Timing Parameters:

  1. In Lattice Radiant, open the "Module/IP Block Wizard" for the TX D-PHY IP.
  2. Navigate to the "Protocol Timing Parameter tab".
  3. Select the "Customize TX Timing Parameter Values" option.
  4. Modify the parameters according to the values provided by this tool.
  5. Click the "Generate" button to save your changes.
UI (ps):
D-PHY Clock Frequency (MHz):
Byte Clock Period (ps):
D-PHY Clock Period (ns):
Byte Clock Frequency (MHz):
TX Timing Outputs
Parameter Min Max IP Default
t_LPX
t_HS-PREPARE
t_HS_ZERO
t_HS_TRAIL
t_HS_EXIT
t_CLK-Prepare
t_CLK-ZERO
t_CLK-PRE
t_CLK-POST
t_CLK-TRAIL
t_CLK-EXIT

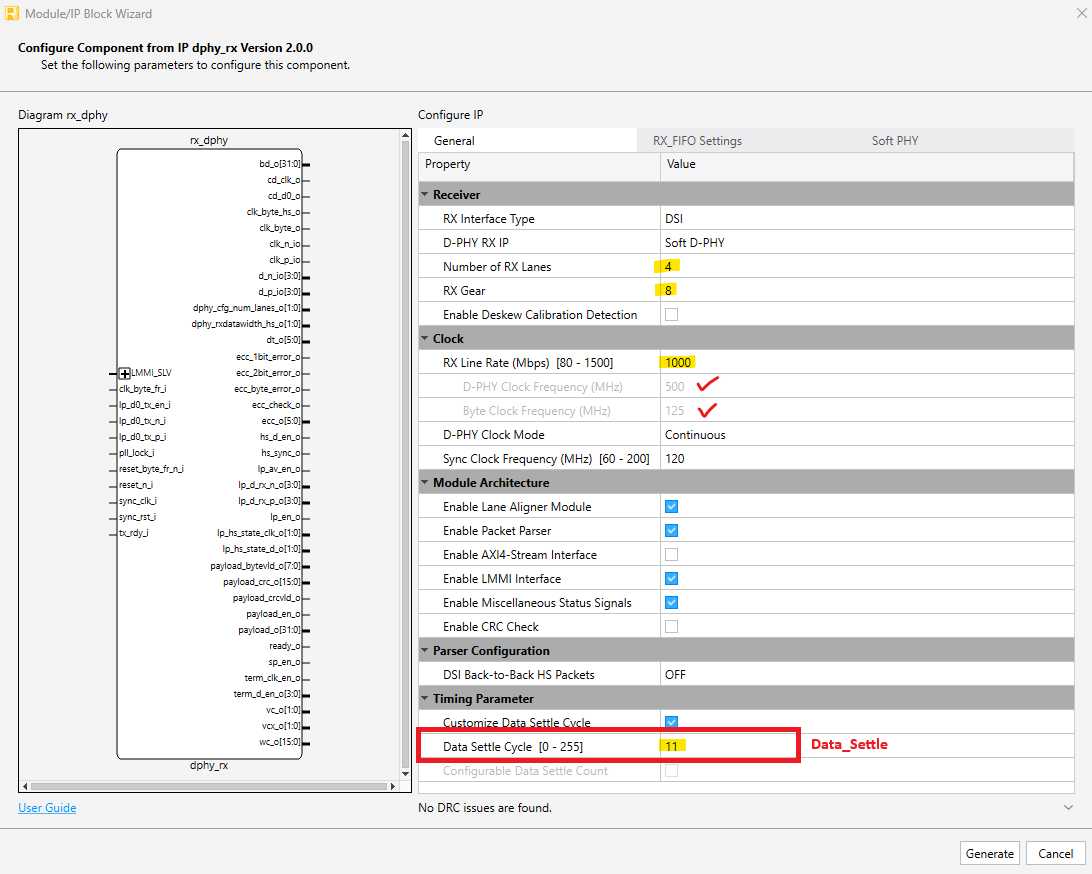

RX Timing Output
Parameter Min Max IP Default
Data_Settle
