MIPI Configuration

User Configuration

This page allows you to calculate the MIPI bandwidth and clock frequencies for the Lattice devices based on the input parameters.

Lattice Byte to Pixel Converter User Guide

Lattice Pixel to Byte Converter User Guide

Instructions

Select your device from the Device dropdown above.
Enter the respective parameters in the input fields.
Pressing "Calculate" will display the values for Bits per Clock, D_PHY Clock, Pixel Clock Frequency and Byte Clock Frequency.

Mode:

Device:

Package:

Speed:

Note: Valid range for Line Rate (Mbps) is currently and will update automatically based on your selected Device, Package and Speed Grade.

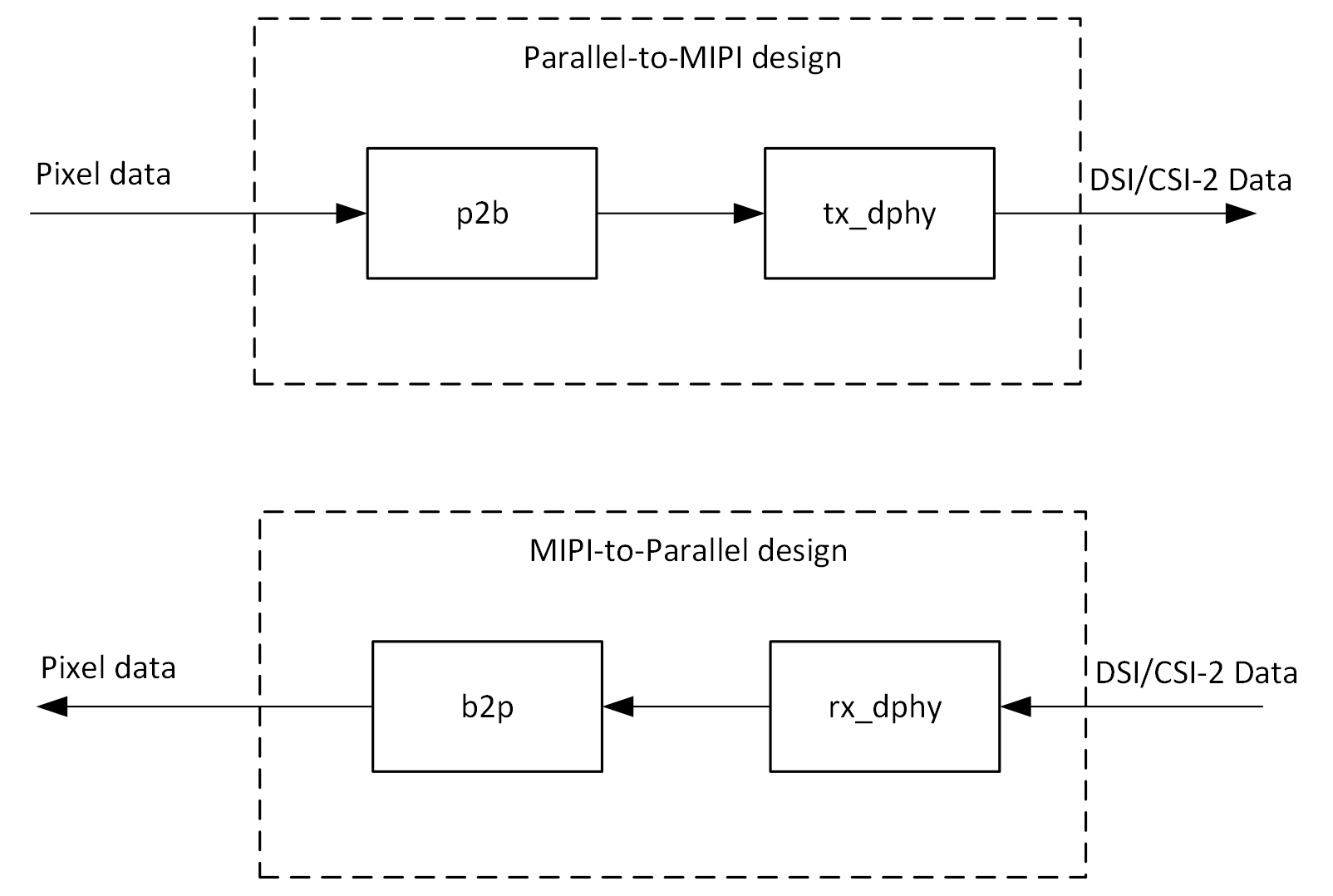

Click this image to enlarge

Line Rate (Mbps)

Number of Lanes

Number of Gear

Data Type

Pixel per Clock

Supported Data Type Table

CSI-2 Supported Data Type 8	Pixel Data Output Width
RAW8	8
RAW10	10
RAW12	12
RAW14	14
RAW16	16
YUV_420_8	8
YUV_420_10	10
YUV_422_8	8
YUV_422_10	10
RGB888	24

Pixel-Byte Frequency Calculator

This page allows you to calculate the MIPI bandwidth for selected Lattice devices based on the input parameters.

Lattice Byte to Pixel Converter User Guide

Lattice Pixel to Byte Converter User Guide

Usage Instructions

1. Enter parameters value into their respective fields.
2. Click the "Calculate" button to compute the respective bandwidth.
3. The results will be displayed below the input fields.
4. Use the "Clear" button to reset the form fields.

Input to Pixel-to-Byte

Output to Byte-to-Pixel
